Integrate to PayEx Customer API

Introduction

This api is used to create/read customers or change properties related to the customer.


Each resource in the API corresponds to its own route. All routes are structured according to a specific standard, explained below

The below route is an example of a route towards resource2Id, to operate on this resource you must also include the ids of its parentresources in the route.
lf-api.payex.com/ledger/{Subdomain}/v1/{LedgerNumber}/resource1/{resource1Id}/resource2/{resource2Id}

Route segmentDescription
SubdomainIn this part of the API it will be customer
LedgerNumberThe ledger identifier/number at PayEx
resource1IdIdentifier of resource1
resource2Ididentifier of resource2, subresource to resource1

Routes that occurs in examples of this documentation will use the following identifiers

ResourceIdentifier
LedgerNumberXXX
CustomerNNN (CustomerNo)

Changelog

2023-01-17
Added surpluses property to the Customer resource with planned release 2024-01-23

2023-11-27
Added new resource Surpluses & added a general 404 not-found to problems list.

2024-04-26

Added TaxIdentificationNumber to the Customer resource with planned release 2024-05-28

2024-05-15

Added Consent and underlying resources with planned release 2024-05-28. Updated Introduction API overview visual.

Customer

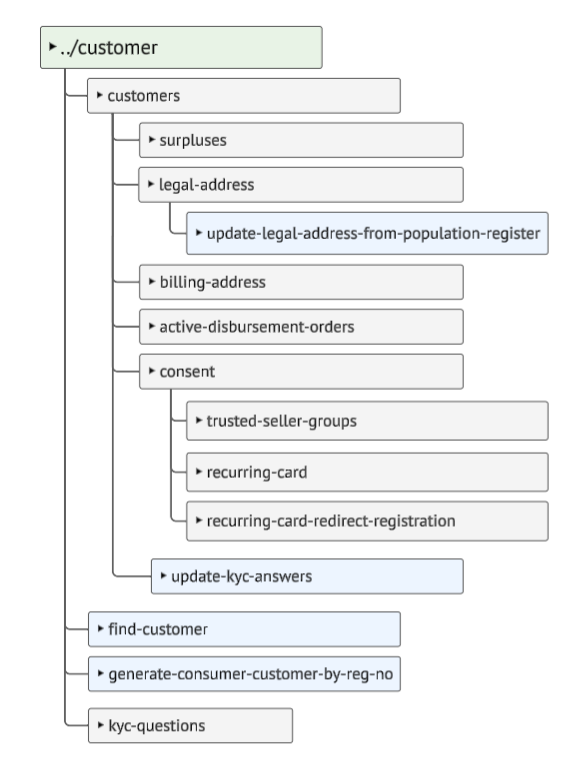

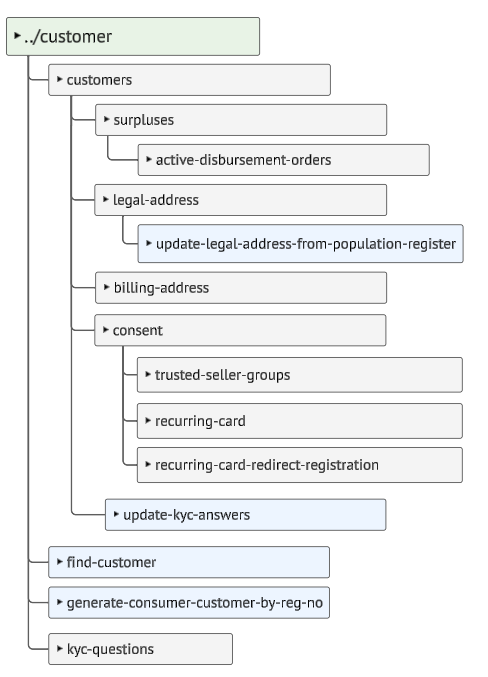

The customer resource is located under ledger/customer/v1/ apiThe customer- and its sub-resources are used to create, read and modify information related to customers.

Get a specific customer

Request
GET /ledger/customer/v1/XXX/customers/NNN HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

Response
HTTP/1.1 200 OK
Content-Type: application/json

{
   "@id" : "/ledger/customer/v1/XXX/customers/9999",
   "customerNo" : "9999",
   "nationalIdentifier": {
     "regNo" : "YYYYMMDD-NNNN",
     "countryCode" : "SE"
    },
   "vatNo" : "SE101010101001",
   "legalEntity" : "consumer|business",
   "name" : "Britt-Marie Axelstopp",
   "emailAddress" : "britt@axelstopp.com",
   "protectedIdentity": false,
   "preferredLanguageCode": "SV",
   "legalStatus": "active",
   "msisdn" : "+91485918841",
   "activeConsents": [
       "Betalingsservice",
       "Avtalegiro"
    ],
   "eDIAddressInfo" : {
     "VAN": "ABCXYZ",
     "InterChangeRecipient": "Recipient_ID1",
     "BuyerId": "123465"
    },
   "legalAddress" : "/ledger/customer/v1/XXX/customers/9999/legal-address",
   "billingAddress" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
   "surpluses": "/ledger/customer/v1/XXX/customers/9999/surpluses",
   "operations" :
    [
        {
           "rel" : "add-billing-address",
           "href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
           "method" : "POST"
        }
    ]
}

Get a specific customer using $expand

if the entire customer model is needed, you can expand property references to other resources, in this example to get the customer model including the addresses on a single call.

Performance is affected when expand is used as more resources are retrieved. Only use $expand if you always need the referenced properties, otherwise it should be retrevied on demand.

Request
GET /ledger/customer/v1/XXX/customers/NNN?$expand=legaladdress,billingaddress HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Response
HTTP/1.1 200 OK
Content-Type: application/json

{
   "@id" : "/ledger/customer/v1/XXX/customers/9999",
   "customerNo" :  "9999",
   "nationalIdentifier": {
     "regNo" : "YYYYMMDD-NNNN",
     "countryCode" : "SE"
    },
   "vatNo" : "SE101010101001",
   "legalEntity" : "consumer|business",
   "name" : "Britt-Marie Axelstopp",
   "emailAddress" : "britt@axelstopp.com",
   "protectedIdentity": false,
   "preferredLanguageCode": "SV",
   "legalStatus": "active",
   "msisdn" : "+91485918841",
   "activeConsents": [
       "Betalingsservice",
       "Avtalegiro"
    ],
   "eDIAddressInfo" : {
     "VAN": "ABCXYZ",
     "InterChangeRecipient": "Recipient_ID1",
     "BuyerId": "123456"
    },
   "legalAddress" : {
       "addressee" : "Britt-Marie Axelstopp",
       "streetAddress" : "The street 18",
       "coAddress" : "c/o Jansson",
       "city" : "STOCKHOLM",
       "zipCode" : "15961",
       "countryCode" : "SE",
       "operations" :
            [
                {
                   "rel" : "update",
                   "href" : "/ledger/customer/v1/XXX/customers/9999/legal-address",
                   "method" : "PUT"
                },
                            {
                   "rel" : "update-legal-address-from-population-register",
                   "href" : "/ledger/customer/v1/XXX/customers/9999/legal-address",
                   "method" : "POST"
                }
            ]
    },
   "billingAddress" : {
       "addressee" : "Kalle Axelstopp",
       "streetAddress" : "Axelgatan 18",
       "city" : "STOCKHOLM",
       "zipCode" : "16872",
       "countryCode" : "se",
       "operations" :
            [
                {
                   "rel" : "update",
                   "href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
                   "method" : "PUT"
                },
                {
                   "rel" : "delete",
                   "href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
                   "method" : "DELETE"
                }
            ]
    },
   "surpluses": "/ledger/customer/v1/XXX/customers/9999/surpluses",
   "operations" :
    [
        {
           "rel" : "add-billing-address",
           "href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
           "method" : "POST"
        }
    ]
}

Create new customer

Important to note!
  • Standard length of customerNo in Norway and Denmark is 7 characters (numeric only).
  • Only use numeric characters and not with a leading zero for customerNo in Sweden, in order to use AutoGiro (Direct Debit).
  • Dependency to legalEntity:
    • Late fee will be added instead of reminder fee or collection claim fee when legalEntity is set to "business" (if specially contracted with PayEx and configured in ledger).
    • SSN (regNo) for private individuals will not be displayed in ledger reports due to GDPR. regNO will only be displayed when legalEntity is set till "business".
    • When invoice/claim is distributed by e-mail: If legalEntity is set to "consumer" the e-mail message will only include a link to PayEx Invoice Portal where the invoice/claim is available, otherwise a copy of the invoice/claim will be added in the e-mail message as a pdf-file.
    • Finland only: Different claim processes will be used depending on "consumer" or "business".

A new customer is created by making a POST call to the API.
See below table of properties that is supported when creating a new customer. The table below also reflects what properties you can expect when retreiving a customer through a "GET" request.

PropertyRequiredComment *
customerNoYes*Normally required, exception is when the configuration on the ledger is set for payex to generate customer numbers, in that case CustomerNo must not be set in request.
nationalIdentifierNo*Normally optional, exception is when the configuration on the ledger is set for payex to generate customer numbers, in that case nationalIdentifier is required.
   nationalIdentifier.regNoYes
   nationalIdentifier.countryCodeYes
vatNoNo*Required if reverse tax is used
legalEntityNo
nameYes
preferredLanguageCodeNo
emailAddressNo
msisdnNo
protectedIdentityNo
distributionTypeNo
taxIdentificationNumberNo
eDIAddressInfoNo
   eDIAddressInfo.vanNo*This field is required for distribution method EInvoiceB2B (EDI) to be used
   eDIAddressInfo.interChangeRecipientNo
   eDIAddressInfo.BuyerIdYes
legalAddressYes
   addresseeYes
   streetAddressNo
   coAddressNo
   cityYes
   zipCodeYes
   countryCodeYes
billingAddressNo
   addresseeYes
   streetAddressNo
   coAddressNo
   cityYes
   zipCodeYes
   countryCodeYes
Examples

Standard create customer

Request
POST /ledger/customer/v1/XXX/customers HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "customerNo" :  "9999",
   "nationalIdentifier": {
     "regNo" : "YYYYMMDD-NNNN",
     "countryCode" : "SE"
    },
   "vatNo" : "SE101010101001",
   "legalEntity" : "consumer|business",
   "name" : "Britt-Marie Axelstopp",
   "emailAddress" : "britt@axelstopp.com",
   "msisdn" : "+91485918841",
   "eDIAddressInfo" : {
     "VAN": "ABCXYZ",
     "InterChangeRecipient": "Recipient_ID1",
     "BuyerId": "123456"
    },
   "legalAddress" : {
       "addressee" : "Britt-Marie Axelstopp",
       "streetAddress" : "The street 18",
       "coAddress" : "c/o Jansson",
       "city" : "STOCKHOLM",
       "zipCode" : "15961",
       "countryCode" : "SE"
    },
   "distributionType": "postal",
   "taxIdentificationNumber" : "123456789"
}

Response
HTTP/1.1 201 CREATED
Content-Type: application/json

{
   "@id" : "/ledger/customer/v1/XXX/customers/9999",
   "customerNo" :  " 9999"
}

Create customer with billing-address

Request
POST /ledger/customer/v1/XXX/customers HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "customerNo" :  "9999",
   "nationalIdentifier": {
     "regNo" : "YYYYMMDD-NNNN",
     "countryCode" : "SE"
    },
   "vatNo" : "SE101010101001",
   "legalEntity" : "consumer|business",
   "name" : "Britt-Marie Axelstopp",
   "emailAddress" : "britt@axelstopp.com",
   "msisdn" : "+91485918841",
   "eDIAddressInfo" : {
     "VAN": "ABCXYZ",
     "InterChangeRecipient": "Recipient_ID1",
     "BuyerId": "123456"
    },
   "legalAddress" : {
       "addressee" : "Britt-Marie Axelstopp",
       "streetAddress" : "The street 18",
       "coAddress" : "c/o Jansson",
       "city" : "STOCKHOLM",
       "zipCode" : "15961",
       "countryCode" : "SE"
    },
   "billingAddress" : {
       "addressee" : "Kalle Axelstopp",
       "streetAddress" : "Axelgatan 18",
       "city" : "STOCKHOLM",
       "zipCode" : "16872",
       "countryCode" : "SE"
    }
}

Response
HTTP/1.1 201 CREATED
Content-Type: application/json

{
   "@id" : "/ledger/customer/v1/XXX/customers/9999",
   "customerNo" :  " 9999"
}


Update customer

Some properties of the customer can be updated through this API. Properties will only be updated if included in the request. To delete a property, for example, the property must be included in the request and have the value set to null (see examples below).

The following customer properties is possible to update through a patch call

Property
emailAddress
legalStatus
preferredLanguageCode
protectedIdentity
msisdn
distributionType
taxIdentificationNumber
eDIAddressInfo
   eDIAddressInfo.van
   eDIAddressInfo.interChangeRecipient
   eDIAddressInfo.BuyerId
Examples

Update all properties

Request
PATCH /ledger/customer/v1/XXX/customers/NNN HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "emailAddress" : "britt@axelstopp.com",
   "protectedIdentity": false,
   "preferredLanguageCode": "SV",
   "legalStatus": "active",
   "msisdn" : "+91485918841",
   "eDIAddressInfo" : {
     "VAN": "ABCXYZ",
     "InterChangeRecipient": "Recipient_ID1",
     "BuyerId": "123456"
    },
   "distributionType": "postal",
   "taxIdentificationNumber" : "987654321"
}

Update only emailAddress

Request
PATCH /ledger/customer/v1/XXX/customers/NNN HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "emailAddress" : "britt@axelstopp.com"
}

Update emailAddress and delete msisdn

Request
PATCH /ledger/customer/v1/XXX/customers/NNN HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "emailAddress" : "britt@axelstopp.com",
   "msisdn" : null
}

Remove EDIAddressInfo on a customer

Request
PATCH /ledger/customer/v1/XXX/customers/NNN HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "eDIAddressInfo" : null
}

Customer resource properties

PropertyData typeFormatDescription
@id string Uri of the specific customer
customerNostringMinLength: 1
MaxLength: 15*
numeric, 1-9
The unique identifier of the customer
MaxLength may differ depending on configuration
KID (Norway)
nationalIdentifierobject
   nationalIdentifier.regNostringCountry specificSweden: YYYYMMDD-NNNC
Norway: DDMMYYNNNNN
   nationalIdentifier.countryCodestringISO 3166-1 alpha-2
vatNostringMinLength: 7
MaxLength: 17
Regex pattern:
[A-Z]{2}.*
Customer VAT registration number. Mandatory if reverse tax is used. Must conform to country specific algorithm
legalEntitystring Valid values:
"consumer"
"business"
namestringMaxlength: 72
Regex?
Full name of end-customer
emailAddressstringMaxlength: 254
Regex pattern: [^@]+@[^\.]+\..+

protectedIdentitybool Set to true if the customer has protected identity
Postal distribution will be handled by "Skatteverket". Only supported in Sweden
preferredLanguageCodestring

Valid values:

  • SV
  • NO
  • DA
  • FI
  • EN
legalStatusstring

Valid values:

  • active
  • deceased
msisdnstringMaxlength: 15
Minlength: 5
+NNNN
 "Mobile Subscriber Integrated Services Digital Network Number", ie. Cellphone number
Countrycode is always required as the example below
+46720000000
distributionTypestring Sets distribution type. Allowed values are:
  • postal
  • noDistribution
taxIdentificationNumberstringMaxlength: 20
Minlength: 1
Is an identification number used by the Internal Revenue Service (IRS) in the administration of tax laws
activeConsentsobject List of strings with possible values:
  • Autogiro

  • Avtalegiro

  • Betalingsservice

  • RecurringCard

  • RecurringInvoiceToken

  • EInvoice

  • Kivra

  • EBoks

eDIAddressInfoobject EDI addressing info
   eDIAddressInfo.vanstringMaxlength: 255

Buyer VAN identifier (OperatorId)

   eDIAddressInfo.interChangeRecipientstringMaxlength: 13Routing address. EAN
   eDIAddressInfo.BuyerIdstringMaxlength: 13NAD_BY/Buyerparty. EAN/Corporate identity number
legalAddressuri reference to the customers legal address
billingAddressuri reference to the customer billing address
surplusesuri reference to the customer surpluses

Operations

Depending on the current permissions the following operations is supported on the customer resource

add-billing-address

Method: POST
This operation will be available if no billing-address exists on the customer, see billing-address resource for more details


Surpluses

A surplus is the remaining value from a payment that was greater than the current debt, also referred as an 'overpayment'. Each instance of an overpayment will create a new surplus. A surplus will often have a connection to an account or invoice based of where the payment was placed but surpluses without connection to an account or invoice also exist. Surpluses can be used to settle upcoming debt or be disbursed.

Get specified Surplus information

Request
GET /ledger/customer/v1/XXX/customers/NNN/surpluses/YYY HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Response
HTTP/1.1 200 OK
Content-Type: application/json

{
  "surplusId": "YYY",
  "balance": 10.00,
  "currency": "SEK",
  "date": "2023-01-01T00:00:00",
  "status": "open",
  "invoice": "/ledger/invoice/v1/XXX/invoices/AAA",
  "account": "/ledger/account/v1/XXX/accounts/BBB",
  "operations": [],
  "@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses/YYY"


Get list of Surpluses Information

Request
GET /ledger/customer/v1/XXX/customers/NNN/surpluses HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Response
HTTP/1.1 200 OK
Content-Type: application/json

{
   "items": [
        {
         "surplusId": "123",
         "balance": 10.00,
         "currency": "SEK",
         "date": "2023-01-01T00:00:00",
         "status": "open",
         "invoice": "/ledger/invoice/v1/XXX/invoices/AAA",
         "operations": [],
         "@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses/123"

        },
        {
         "surplusId": "456",
         "balance": 20.00,
         "currency": "SEK",
         "date": "2023-01-02T00:00:00",
         "status": "pending-disbursement",
         "account": "/ledger/account/v1/XXX/accounts/BBB",
         "operations": [],
         "@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses/456"

        },
        {
         "surplusId": "789",
         "balance": 30.00,
         "currency": "SEK",
         "date": "2023-01-03T00:00:00",
         "status": "pending-regulate",
         "invoice": "/ledger/invoice/v1/XXX/invoices/AAA",
         "operations": [],
         "@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses/789"

        }
    ],
   "navigation": {
       "@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses",
       "first": "/ledger/customer/v1/XXX/customers/NNN/surpluses?skip=0",
       "previous": "/ledger/customer/v1/XXX/customers/NNN/surpluses?skip=0"
    }
}

Surpluses resource properties

PropertyData typeFormatDescription
@id stringMaxlength: Uri of the specific surplus
surplusIdstringMaxlength: 50Value is not considered case sensitive
balancestring Amount value for the surplus, always a positive value
currencystringISO 4217
datedateyyyy-MM-ddTHH:mm:ssSurplus creation date
statusstring Expected statuses: open | pending-disbursement | pending-regulate
After a surplus has been depleted it will no longer be returned from the API
invoicestring Relative Uri to the connected source of the surplus through the Invoice API. A surplus can have a connection to an account or invoice but not both.
accountstring Relative Uri to the connected source of the surplus through the Account API. A surplus can have a connection to an account or invoice but not both.

Active-Disbursement-Orders

This shows if current surplus has been ordered to disburse the surplus to the end customer.

Get active disbursement orders

Request
GET /ledger/customer/v1/XXX/customers/NNN/surpluses/YYY/active-disbursement-orders HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Response
HTTP/1.1 200 OK
Content-Type: application/json

{
   "items": [
        {
           "operations": [],
           "swedishBankAccount": {
               "accountNo": "3300-1010101010",
               "accountType": "BKSE"
            }
        }
    ],
   "navigation": {
       "@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses/YYY/active-disbursement-orders"
    }
}

Operations

Depending on the current permissions the following operations is supported on the surplus resource

add-disbursement-orders

Method: POST
This operation will be available if agreed with payex.

request properties

PropertyData typeRequiredDescription
norwegianBankAccountobjectNo*
   accountNostringYes
swedishBankAccountobjectNo*
   clearingNostringYes
   accountNostringYes
internationalobjectNo*
   ibanstringYes
   bicstringYes
swedishSusobjectNo*
nationalIdentifierobjectYes
      regNostringYes
      countryCodestringYes
addressobjectYes
      addresseestringYes
      streetAddressstringNo
      coAddressstringNo
      citystringYes
      zipCodestringYes
      countryCodestringYes


* One and only one of the specified objects can be set at each request

Examples

Create disbursement with swedish bank account

Request
POST /ledger/customer/v1/XXX/customers/NNN/surpluses/YYY/active-disbursement-orders HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "SwedishBankAccount" : {
       "AccountNo":"944-1049000",
       "AccountType":"BGSE"
    }
}

Create a disbursement order with a norwegian bankaccount

Request
POST /ledger/customer/v1/XXX/customers/NNN/surpluses/YYY/active-disbursement-orders HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "norwegianBankAccount" : {
     "accountNo" : "1234"
    }
}

Create a disbursement order with an international bankaccount

Request
POST /ledger/customer/v1/XXX/customers/NNN/surpluses/YYY/active-disbursement-orders HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "international" : {
       "iban" : "123456",
       "bic" : "SWED..."
    }
}

Create disbursement order using "Swedbanks lön- och utbetalningssystem (SUS)"

Request
POST /ledger/customer/v1/XXX/customers/NNN/surpluses/YYY/active-disbursement-orders HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "swedishSus" : {
       "nationalIdentifier": {
           "regNo" : "YYYYMMDD-NNNN",
           "countryCode" : "SE"
        },
       "address" : {
           "addressee" : "Kalle Axelstopp",
           "streetAddress" : "Axelgatan 18",
           "coAddress" : null,
           "city" : "STOCKHOLM",
           "zipCode" : "16872",
           "countryCode" : "se",
        }
    }
}



Legal-address

The legal address is where claims is normally sent to. It is required for a customer to have a legal address registered

Get the legal address of the customer

Request
GET /ledger/customer/v1/XXX/customers/NNN/legal-address HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Response
HTTP/1.1 200 OK
Content-Type: application/json

{
   "addressee" : "Britt-Marie Axelstopp",
   "streetAddress" : "The street 18",
   "coAddress" : "c/o Jansson",
   "city" : "STOCKHOLM",
   "zipCode" : "15961",
   "countryCode" : "SE",
   "operations" :
        [
            {
               "rel" : "update",
               "href" : "/ledger/customer/v1/XXX/customers/9999/legal-address",
               "method" : "PUT"
            },
                        {
               "rel" : "update-legal-address-from-population-register",
               "href" : "/ledger/customer/v1/XXX/customers/9999/legal-address/update-legal-address-from-population-register",
               "method" : "POST"
            }
        ]
}

Operations

Depending on the current permissions the following operations is supported on the legal address resource

Update (replace)

Method: PUT
Use this operation to update the address, this "PUT" operation will replace the existing billing-address with the address specified in the request body.

PropertyRequired
addresseeYes
streetAddressNo
coAddressNo
cityYes
zipCodeYes
countryCodeYes

Example

Request
PUT /ledger/customer/v1/XXX/customers/NNN/legal-address HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
       "addressee" : "Kalle Axelstopp",
       "streetAddress" : "Axelgatan 18",
       "city" : "STOCKHOLM",
       "zipCode" : "16872",
       "countryCode" : "SE"
}

Method: POST
Execution of this operation will result in an attempt to retrieve (and replace) the customer's legal address from the population registry.

Access to this operation is not normally granted, unless otherwise agreed.

Request
POST /ledger/customer/v1/XXX/customers/NNN/legal-address/update-legal-address-from-population-register HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
}

Legal-address resource properties

PropertyData typeFormatDescription
addresseestringMaxlength: 72Fullname
streetAddressstringMaxlength: 72
coAddressstringMaxlength: 72Care of (C/O) name. This is optional.
citystringMaxlength: 27
zipCodestringMaxlength: 9ZipCode without whitespaces
countryCodestringISO 3166-1 alpha-2

Billing-address

The billing address is where invoices/bills/letters etc. is normally sent to.This address is optional

Get the billing address of the customer

Request
GET /ledger/customer/v1/XXX/customers/NNN/billing-address HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Response
HTTP/1.1 200 OK
Content-Type: application/json

{
   "addressee" : "Kalle Axelstopp",
   "streetAddress" : "Axelgatan 18",
   "coAddress" : "c/o Jansson",
   "city" : "STOCKHOLM",
   "zipCode" : "16872",
   "countryCode" : "SE",
   "operations" :
        [
            {
               "rel" : "update",
               "href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
               "method" : "PUT"
            },
            {
               "rel" : "delete",
               "href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
               "method" : "DELETE"
            }
        ]
}

Add a billing-address

PropertyRequired
addresseeYes
streetAddressNo
coAddressNo
cityYes
zipCodeYes
countryCodeYes
Request
POST /ledger/customer/v1/XXX/customers/NNN/billing-address HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
       "addressee" : "Kalle Axelstopp",
       "streetAddress" : "Axelgatan 18",
       "city" : "STOCKHOLM",
       "zipCode" : "16872",
       "countryCode" : "SE"
}

Operations

Depending on the current permissions the following operations is supported on the billing address resource

Update (replace)

Method: PUT
Use this operation to update the address, the "PUT" body of the request should be accoring to the properties of the resource.

PropertyRequired
addresseeYes
streetAddressNo
coAddressNo
cityYes
zipCodeYes
countryCodeYes
Request
PUT /ledger/customer/v1/XXX/customers/NNN/billing-address HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
       "addressee" : "Kalle Axelstopp",
       "streetAddress" : "Axelgatan 18",
       "city" : "STOCKHOLM",
       "zipCode" : "16872",
       "countryCode" : "SE"
}
Delete

Method: DELETE
Use this operation to delete the billing address.

Request
DELETE /ledger/customer/v1/XXX/customers/NNN/billing-address HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
}

Billing-address resource properties

PropertyData typeFormatDescription
addresseestringMaxlength: 72Fullname
streetAddressstringMaxlength: 72
coAddressstringMaxlength: 72Care of (C/O) name. This is optional.
citystringMaxlength: 27
zipCodestringMaxlength: 9ZipCode without whitespaces
countryCodestringISO 3166-1 alpha-2

Consent

The consent resource is used to get the underlying resources that display information or enable registration of a customer's consent.

Get the underlying consent resources of the customer

Request
GET /ledger/customer/v1/XXX/customers/NNN/consent HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Response
HTTP/1.1 200 OK
Content-Type: application/json

{
 "recurringCard": "/ledger/customer/v1/XXX/customers/NNN/consent/recurring-card",

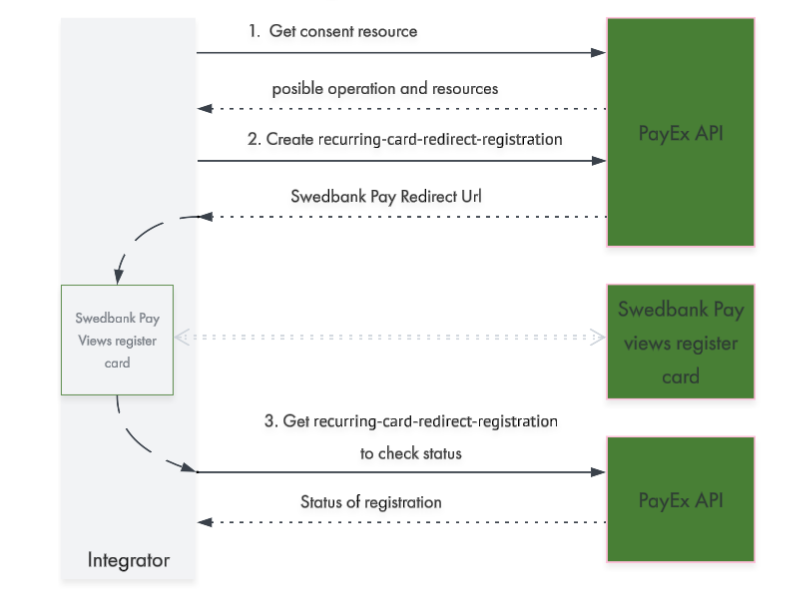

 "recurringCardRedirectRegistration": "/ledger/customer/v1/XXX/customers/NNN/consent/recurring-card-redirect-registration"
}

Consent resource properties

PropertyData typeFormatDescription
recurringCardstringPathEndpoint to resource
recurringCardRedirectRegistrationstringPathEndpoint to resource

Recurring-card

This resource provides details about the customer's active Recurring Card Consent and the ability to remove it.

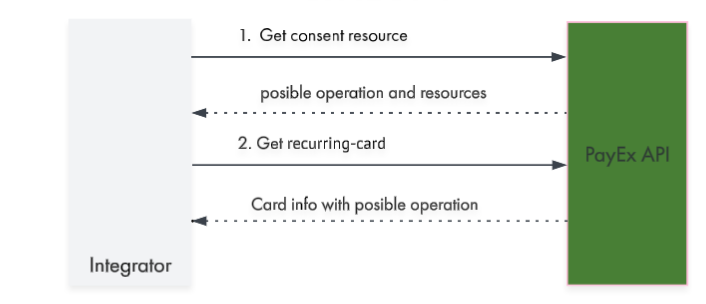

Get customer active Recurring Card Consent
Request
GET /ledger/customer/v1/XXX/customers/NNN/consent/recurring-card HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Response
HTTP/1.1 200 OK
Content-Type: application/json

{
 "cardToken": "2eb28854-07ec-4e88-b672-7c61cc54b461",
 "consentExpiryDate": "04-2035",
 "instrumentDisplayName": "551000******1232",
 "cardExpiryDate": "04/2035"
}

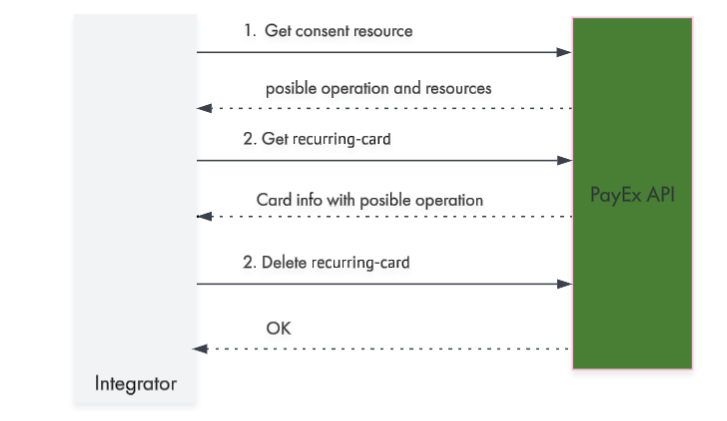

Delete customer active Recurring Card Consent
Request
DELETE /ledger/customer/v1/XXX/customers/NNN/consent/recurring-card HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
}
Response
HTTP/1.1 204 NoContent
Content-Type: application/json

{
}
Recurring-card resource properties
PropertyData typeFormatDescription
cardTokenstringGuidCard Token Id
consentExpiryDatestringDate (MM-yyyy)Expiry date of the consent
instrumentDisplayNamestringMasked numberMasked card number used in the presentation layer
cardExpiryDatestringDate (MM/yyyy)Expiry date of the card

Recurring-card-redirect-registration

Initializes the customer's Recurring Card registration with redirect to SwedbankPay. The resource should be inquired until the status reaches an end status. Only one registration can be active at a time.

Start a Recurring Card registration
PropertyRequiredComment
completeUrlYesRedirect Url to be used if the user completes the card verification process.
cancelUrlYesRedirect Url to be used if the user cancels the card verification process.
languageYesA language specified in the ISO 639-1 language code and with two letter country codes in the format "xx-YY". The following pairs are available: "en-US", "sv-SE", "nb-NO", "da-DK" and "fi-FI".
Request
POST /ledger/customer/v1/XXX/customers/NNN/consent/recurring-card-redirect-registration HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
 "completeUrl": "https://www.google.com/search?q=cancelurl",
 "cancelUrl": "https://www.google.com/search?q=completeurl",
 "language": "en-US"
}
Response
HTTP/1.1 200 OK
Content-Type: application/json

{
 "redirectUrl": "https://ecom.externalintegration.payex.com/checkout/abc123",
 "status": "Initialized",
 "@id": "/ledger/customer/v1/xxx/customers/yyy/consent/recurring-card-redirect-registration"
}
Get Recurring Card Redirect Registration
Request
GET /ledger/customer/v1/XXX/customers/NNN/consent/recurring-card-redirect-registration HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
}
Response
HTTP/1.1 200 OK
Content-Type: application/json

{
 "redirectUrl": "https://ecom.externalintegration.payex.com/checkout/abc123",
 "status": "Initialized"
}
Recurring-card-redirect-registration resource properties
PropertyData typeFormatDescription
redirectUrlstringUrlThe redirect url to a flow that confirms the validity of card information without reserving or charging any amount.
statusstring Status of the card validity verification process. One of the following: "Initialized", "Completed", "Aborted" or "Failed".

Find customer

The find customer resource is located under ledger/customer/v1/ apiIt is used to find customer with nationalIdentifier.

PropertyRequired
nationalIdentifier.regNoYes
nationalIdentifier.countryCodeYes
Request
POST /ledger/customer/v1/XXX/find-customer HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "nationalIdentifier": {
     "regNo" : "YYYYMMDD-NNNN",
     "countryCode" : "SE"
    }
}
Response
HTTP/1.1 200 OK
Content-Type: application/json

{
   "@id" : "/ledger/customer/v1/XXX/customers/9999",
   "customerNo" :  " 9999"
}

Find customer resource properties

PropertyData typeFormatDescription
@id stringMaxlength: Uri of the specific customer
customerNostringMaxlength: 15
nationalIdentifier.regNostringCountry specificSweden: YYYYMMDD-NNNC
Norway: DDMMYYNNNNN
nationalIdentifier.countryCodestringISO 3166-1 alpha-2

Generate customer

The generate consumer customer by reg no resource is located under ledger/customer/v1/ apiIt is used to genarate a customer with a nationalIdentifier. It will retreive an legal address from the population register and create a consumer customer.

Access to this operation is not normally granted, unless otherwise agreed.

PropertyRequired
customerNoNo
nationalIdentifier.regNoYes
nationalIdentifier.countryCodeYes
emailAddressNo
msisdnNo
Request
POST /ledger/customer/v1/XXX/generate-consumer-customer-by-reg-no HTTP/1.1
Host: -
Authorization: Bearer <Token>
Content-Type: application/json

{
   "nationalIdentifier": {
     "regNo" : "YYYYMMDD-NNNN",
     "countryCode" : "SE"
    },
   "emailAddress" : "britt@axelstopp.com",
   "msisdn" : "+91485918841",
   "customerNo" :  "9999"
}
Response
HTTP/1.1 201 CREATED
Content-Type: application/json

{
   "@id" : "/ledger/customer/v1/XXX/customers/9999",
   "customerNo" :  " 9999"
}

Generate customer resource properties

PropertyData typeFormatDescription
@id stringMaxlength: Uri of the specific customer
customerNostringMaxlength: 15
nationalIdentifier.regNostringCountry specificSweden: YYYYMMDD-NNNC
Norway: DDMMYYNNNNN
nationalIdentifier.countryCodestringISO 3166-1 alpha-2
emailAddressstringMaxlength: 254
Regex pattern: [^@]+@[^\.]+\..+

msisdnstringMaxlength: 15 "Mobile Subscriber Integrated Services Digital Network Number", ie. Cellphone number
+46720000000

Problems

All errors from the api are returned in the form of "problems" (response body), except for the http status code itself.
The problem object contain more detailed info on what the error is. The "type" property can be used to programmatically interpret the error as it contains a code definition of the problem.
Other properties can be useful for logging and subsequent troubleshooting. Some problems are extended with additional parameters so it may be a good idea to log response body as raw data to include these.

Problems of type validation does contain an additional list ("Problems") that describes exactly which parameter that failed the validation

Example

Response
HTTP/1.1 400 Error
Content-Type: application/problem+json

{
  "Type" : "ledger/{domain}/v1/problems/validation",
  "Title" : "A validation error occurred",
  "Status" : 400,
  "Instance" : "215d4206-ca35-4f43-85ad-169c8f6d4ec1",
  "Detail" : "A validation error occurred. Please fix the problems mentioned in the 'problems' property below.",
  "Problems" :
      {
        "amount" : [
           "Expected value between [0,01]-[79228162514264337593543950335] actual [0]"
         ]
      }
}

Problem types

Note, each problem typecode is preceded by "ledger/customer/v1/problems/" in this API, e.g. the error "validation" in the table below will appear as typecode "ledger/customer/v1/problems/validation".

Problem type (code)HttpstatusDescription
validation400occurs if any of the inputvalidation fails, it is described in the problem which parameter that failed the validation
forbidden403occurs if access to method is not allowed.
not-found404specified resource not found
customer-not-found404specified customer number does not exists
legal-address-does-not-exists404legal address does not exists for the specified customer
billing-address-does-not-exists404billing address does not exists for the specified customer

Created by David Persson on 2024/02/21 07:47
