Integrate to PayEx Customer API
Introduction
This api is used to create/read customers or change properties related to the customer.

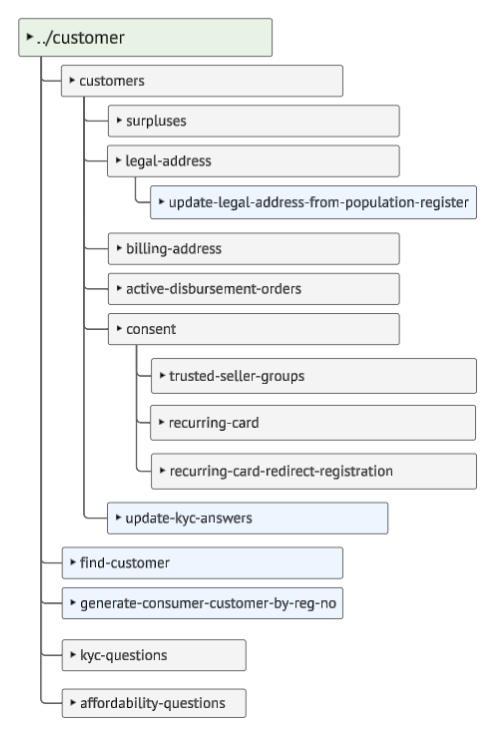

Each resource in the API corresponds to its own route. All routes are structured according to a specific standard, explained below
The below route is an example of a route towards resource2Id, to operate on this resource you must also include the ids of its parentresources in the route.
lf-api.payex.com/ledger/{Subdomain}/v1/{LedgerNumber}/resource1/{resource1Id}/resource2/{resource2Id}
Route segment | Description |
---|---|
Subdomain | In this part of the API it will be customer |
LedgerNumber | The ledger identifier/number at PayEx |
resource1Id | Identifier of resource1 |
resource2Id | identifier of resource2, subresource to resource1 |
Routes that occurs in examples of this documentation will use the following identifiers
Resource | Identifier |
---|---|
LedgerNumber | XXX |
Customer | NNN (CustomerNo) |
Changelog
2023-01-17
Added surpluses property to the Customer resource with planned release 2024-01-23
2023-11-27
Added new resource Surpluses & added a general 404 not-found to problems list.
2024-04-26
Added TaxIdentificationNumber to the Customer resource with planned release 2024-05-28
2024-05-15
Added Consent and underlying resources with planned release 2024-05-28. Updated Introduction API overview visual.
Customer
The customer resource is located under ledger/customer/v1/ api. The customer- and its sub-resources are used to create, read and modify information related to customers.
Get a specific customer
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Content-Type: application/json
{
"@id" : "/ledger/customer/v1/XXX/customers/9999",
"customerNo" : "9999",
"nationalIdentifier": {
"regNo" : "YYYYMMDD-NNNN",
"countryCode" : "SE"
},
"vatNo" : "SE101010101001",
"legalEntity" : "consumer|business",
"name" : "Britt-Marie Axelstopp",
"emailAddress" : "britt@axelstopp.com",
"protectedIdentity": false,
"preferredLanguageCode": "SV",
"legalStatus": "active",
"msisdn" : "+91485918841",
"activeConsents": [
"Betalingsservice",
"Avtalegiro"
],
"eDIAddressInfo" : {
"VAN": "ABCXYZ",
"InterChangeRecipient": "Recipient_ID1",
"BuyerId": "123465"
},
"legalAddress" : "/ledger/customer/v1/XXX/customers/9999/legal-address",
"billingAddress" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
"surpluses": "/ledger/customer/v1/XXX/customers/9999/surpluses",
"operations" :
[
{
"rel" : "add-billing-address",
"href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
"method" : "POST"
}
]
}
Get a specific customer using $expand
if the entire customer model is needed, you can expand property references to other resources, in this example to get the customer model including the addresses on a single call.
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Content-Type: application/json
{
"@id" : "/ledger/customer/v1/XXX/customers/9999",
"customerNo" : "9999",
"nationalIdentifier": {
"regNo" : "YYYYMMDD-NNNN",
"countryCode" : "SE"
},
"vatNo" : "SE101010101001",
"legalEntity" : "consumer|business",
"name" : "Britt-Marie Axelstopp",
"emailAddress" : "britt@axelstopp.com",
"protectedIdentity": false,
"preferredLanguageCode": "SV",
"legalStatus": "active",
"msisdn" : "+91485918841",
"activeConsents": [
"Betalingsservice",
"Avtalegiro"
],
"eDIAddressInfo" : {
"VAN": "ABCXYZ",
"InterChangeRecipient": "Recipient_ID1",
"BuyerId": "123456"
},
"legalAddress" : {
"addressee" : "Britt-Marie Axelstopp",
"streetAddress" : "The street 18",
"coAddress" : "c/o Jansson",
"city" : "STOCKHOLM",
"zipCode" : "15961",
"countryCode" : "SE",
"operations" :
[
{
"rel" : "update",
"href" : "/ledger/customer/v1/XXX/customers/9999/legal-address",
"method" : "PUT"
},
{
"rel" : "update-legal-address-from-population-register",
"href" : "/ledger/customer/v1/XXX/customers/9999/legal-address",
"method" : "POST"
}
]
},
"billingAddress" : {
"addressee" : "Kalle Axelstopp",
"streetAddress" : "Axelgatan 18",
"city" : "STOCKHOLM",
"zipCode" : "16872",
"countryCode" : "se",
"operations" :
[
{
"rel" : "update",
"href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
"method" : "PUT"
},
{
"rel" : "delete",
"href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
"method" : "DELETE"
}
]
},
"surpluses": "/ledger/customer/v1/XXX/customers/9999/surpluses",
"operations" :
[
{
"rel" : "add-billing-address",
"href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
"method" : "POST"
}
]
}
Create new customer
Important to note!
- Standard length of customerNo in Norway and Denmark is 7 characters (numeric only).
- Only use numeric characters and not with a leading zero for customerNo in Sweden, in order to use AutoGiro (Direct Debit).
- Dependency to legalEntity:
- Late fee will be added instead of reminder fee or collection claim fee when legalEntity is set to "business" (if specially contracted with PayEx and configured in ledger).
- SSN (regNo) for private individuals will not be displayed in ledger reports due to GDPR. regNO will only be displayed when legalEntity is set till "business".
- When invoice/claim is distributed by e-mail: If legalEntity is set to "consumer" the e-mail message will only include a link to PayEx Invoice Portal where the invoice/claim is available, otherwise a copy of the invoice/claim will be added in the e-mail message as a pdf-file.
- Finland only: Different claim processes will be used depending on "consumer" or "business".
A new customer is created by making a POST call to the API.
See below table of properties that is supported when creating a new customer. The table below also reflects what properties you can expect when retreiving a customer through a "GET" request.
Property | Required | Comment * |
---|---|---|
customerNo | Yes* | Normally required, exception is when the configuration on the ledger is set for payex to generate customer numbers, in that case CustomerNo must not be set in request. |
nationalIdentifier | No* | Normally optional, exception is when the configuration on the ledger is set for payex to generate customer numbers, in that case nationalIdentifier is required. |
nationalIdentifier.regNo | Yes | |
nationalIdentifier.countryCode | Yes | |
vatNo | No* | Required if reverse tax is used |
legalEntity | No | |
name | Yes | |
preferredLanguageCode | No | |
emailAddress | No | |
msisdn | No | |
protectedIdentity | No | |
distributionType | No | |
taxIdentificationNumber | No | |
eDIAddressInfo | No | |
eDIAddressInfo.van | No* | This field is required for distribution method EInvoiceB2B (EDI) to be used |
eDIAddressInfo.interChangeRecipient | No | |
eDIAddressInfo.BuyerId | Yes | |
legalAddress | Yes | |
addressee | Yes | |
streetAddress | No | |
coAddress | No | |
city | Yes | |
zipCode | Yes | |
countryCode | Yes | |
billingAddress | No | |
addressee | Yes | |
streetAddress | No | |
coAddress | No | |
city | Yes | |
zipCode | Yes | |
countryCode | Yes |
Examples
Standard create customer
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"customerNo" : "9999",
"nationalIdentifier": {
"regNo" : "YYYYMMDD-NNNN",
"countryCode" : "SE"
},
"vatNo" : "SE101010101001",
"legalEntity" : "consumer|business",
"name" : "Britt-Marie Axelstopp",
"emailAddress" : "britt@axelstopp.com",
"msisdn" : "+91485918841",
"eDIAddressInfo" : {
"VAN": "ABCXYZ",
"InterChangeRecipient": "Recipient_ID1",
"BuyerId": "123456"
},
"legalAddress" : {
"addressee" : "Britt-Marie Axelstopp",
"streetAddress" : "The street 18",
"coAddress" : "c/o Jansson",
"city" : "STOCKHOLM",
"zipCode" : "15961",
"countryCode" : "SE"
},
"distributionType": "postal",
"taxIdentificationNumber" : "123456789"
}
Content-Type: application/json
{
"@id" : "/ledger/customer/v1/XXX/customers/9999",
"customerNo" : " 9999"
}
Create customer with billing-address
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"customerNo" : "9999",
"nationalIdentifier": {
"regNo" : "YYYYMMDD-NNNN",
"countryCode" : "SE"
},
"vatNo" : "SE101010101001",
"legalEntity" : "consumer|business",
"name" : "Britt-Marie Axelstopp",
"emailAddress" : "britt@axelstopp.com",
"msisdn" : "+91485918841",
"eDIAddressInfo" : {
"VAN": "ABCXYZ",
"InterChangeRecipient": "Recipient_ID1",
"BuyerId": "123456"
},
"legalAddress" : {
"addressee" : "Britt-Marie Axelstopp",
"streetAddress" : "The street 18",
"coAddress" : "c/o Jansson",
"city" : "STOCKHOLM",
"zipCode" : "15961",
"countryCode" : "SE"
},
"billingAddress" : {
"addressee" : "Kalle Axelstopp",
"streetAddress" : "Axelgatan 18",
"city" : "STOCKHOLM",
"zipCode" : "16872",
"countryCode" : "SE"
}
}
Content-Type: application/json
{
"@id" : "/ledger/customer/v1/XXX/customers/9999",
"customerNo" : " 9999"
}
Update customer
Some properties of the customer can be updated through this API. Properties will only be updated if included in the request. To delete a property, for example, the property must be included in the request and have the value set to null (see examples below).
The following customer properties is possible to update through a patch call
Property |
---|
emailAddress |
legalStatus |
preferredLanguageCode |
protectedIdentity |
msisdn |
distributionType |
taxIdentificationNumber |
eDIAddressInfo |
eDIAddressInfo.van |
eDIAddressInfo.interChangeRecipient |
eDIAddressInfo.BuyerId |
Examples
Update all properties
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"emailAddress" : "britt@axelstopp.com",
"protectedIdentity": false,
"preferredLanguageCode": "SV",
"legalStatus": "active",
"msisdn" : "+91485918841",
"eDIAddressInfo" : {
"VAN": "ABCXYZ",
"InterChangeRecipient": "Recipient_ID1",
"BuyerId": "123456"
},
"distributionType": "postal",
"taxIdentificationNumber" : "987654321"
}
Update only emailAddress
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"emailAddress" : "britt@axelstopp.com"
}
Update emailAddress and delete msisdn
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"emailAddress" : "britt@axelstopp.com",
"msisdn" : null
}
Remove EDIAddressInfo on a customer
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"eDIAddressInfo" : null
}
Customer resource properties
Property | Data type | Format | Description |
---|---|---|---|
@id | string | Uri of the specific customer | |
customerNo | string | MinLength: 1 MaxLength: 15* numeric, 1-9 | The unique identifier of the customer MaxLength may differ depending on configuration KID (Norway) |
nationalIdentifier | object | ||
nationalIdentifier.regNo | string | Country specific | Sweden: YYYYMMDD-NNNC Norway: DDMMYYNNNNN |
nationalIdentifier.countryCode | string | ISO 3166-1 alpha-2 | |
vatNo | string | MinLength: 7 MaxLength: 17 Regex pattern: [A-Z]{2}.* | Customer VAT registration number. Mandatory if reverse tax is used. Must conform to country specific algorithm |
legalEntity | string | Valid values: "consumer" "business" | |
name | string | Maxlength: 72 Regex? | Full name of end-customer |
emailAddress | string | Maxlength: 254 Regex pattern: [^@]+@[^\.]+\..+ | |
protectedIdentity | bool | Set to true if the customer has protected identity Postal distribution will be handled by "Skatteverket". Only supported in Sweden | |
preferredLanguageCode | string | Valid values:
| |
legalStatus | string | Valid values:
| |
msisdn | string | Maxlength: 15 Minlength: 5 +NNNN | "Mobile Subscriber Integrated Services Digital Network Number", ie. Cellphone number Countrycode is always required as the example below +46720000000 |
distributionType | string | Sets distribution type. Allowed values are:
| |
taxIdentificationNumber | string | Maxlength: 20 Minlength: 1 | Is an identification number used by the Internal Revenue Service (IRS) in the administration of tax laws |
activeConsents | object | List of strings with possible values:
| |
eDIAddressInfo | object | EDI addressing info | |
eDIAddressInfo.van | string | Maxlength: 255 | Buyer VAN identifier (OperatorId) |
eDIAddressInfo.interChangeRecipient | string | Maxlength: 13 | Routing address. EAN |
eDIAddressInfo.BuyerId | string | Maxlength: 13 | NAD_BY/Buyerparty. EAN/Corporate identity number |
legalAddress | uri | reference to the customers legal address | |
billingAddress | uri | reference to the customer billing address | |
surpluses | uri | reference to the customer surpluses |
Operations
Depending on the current permissions the following operations is supported on the customer resource
add-billing-address
Method: POST
This operation will be available if no billing-address exists on the customer, see billing-address resource for more details
Surpluses
A surplus is the remaining value from a payment that was greater than the current debt, also referred as an 'overpayment'. Each instance of an overpayment will create a new surplus. A surplus will often have a connection to an account or invoice based of where the payment was placed but surpluses without connection to an account or invoice also exist. Surpluses can be used to settle upcoming debt or be disbursed.
Get specified Surplus information
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Content-Type: application/json
{
"surplusId": "YYY",
"balance": 10.00,
"currency": "SEK",
"date": "2023-01-01T00:00:00",
"status": "open",
"invoice": "/ledger/invoice/v1/XXX/invoices/AAA",
"account": "/ledger/account/v1/XXX/accounts/BBB",
"operations": [],
"@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses/YYY"
Get list of Surpluses Information
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Content-Type: application/json
{
"items": [
{
"surplusId": "123",
"balance": 10.00,
"currency": "SEK",
"date": "2023-01-01T00:00:00",
"status": "open",
"invoice": "/ledger/invoice/v1/XXX/invoices/AAA",
"operations": [],
"@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses/123"
},
{
"surplusId": "456",
"balance": 20.00,
"currency": "SEK",
"date": "2023-01-02T00:00:00",
"status": "pending-disbursement",
"account": "/ledger/account/v1/XXX/accounts/BBB",
"operations": [],
"@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses/456"
},
{
"surplusId": "789",
"balance": 30.00,
"currency": "SEK",
"date": "2023-01-03T00:00:00",
"status": "pending-regulate",
"invoice": "/ledger/invoice/v1/XXX/invoices/AAA",
"operations": [],
"@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses/789"
}
],
"navigation": {
"@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses",
"first": "/ledger/customer/v1/XXX/customers/NNN/surpluses?skip=0",
"previous": "/ledger/customer/v1/XXX/customers/NNN/surpluses?skip=0"
}
}
Surpluses resource properties
Property | Data type | Format | Description |
---|---|---|---|
@id | string | Maxlength: | Uri of the specific surplus |
surplusId | string | Maxlength: 50 | Value is not considered case sensitive |
balance | string | Amount value for the surplus, always a positive value | |
currency | string | ISO 4217 | |
date | date | yyyy-MM-ddTHH:mm:ss | Surplus creation date |
status | string | Expected statuses: open | pending-disbursement | pending-regulate After a surplus has been depleted it will no longer be returned from the API | |
invoice | string | Relative Uri to the connected source of the surplus through the Invoice API. A surplus can have a connection to an account or invoice but not both. | |
account | string | Relative Uri to the connected source of the surplus through the Account API. A surplus can have a connection to an account or invoice but not both. |
Active-Disbursement-Orders
This shows if current surplus has been ordered to disburse the surplus to the end customer.
Get active disbursement orders
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Content-Type: application/json
{
"items": [
{
"operations": [],
"swedishBankAccount": {
"accountNo": "3300-1010101010",
"accountType": "BKSE"
}
}
],
"navigation": {
"@id": "/ledger/customer/v1/XXX/customers/NNN/surpluses/YYY/active-disbursement-orders"
}
}
Operations
Depending on the current permissions the following operations is supported on the surplus resource
add-disbursement-orders
Method: POST
This operation will be available if agreed with payex.
request properties
Property | Data type | Required | Description |
---|---|---|---|
norwegianBankAccount | object | No* | |
accountNo | string | Yes | |
swedishBankAccount | object | No* | |
clearingNo | string | Yes | |
accountNo | string | Yes | |
international | object | No* | |
iban | string | Yes | |
bic | string | Yes | |
swedishSus | object | No* | |
nationalIdentifier | object | Yes | |
regNo | string | Yes | |
countryCode | string | Yes | |
address | object | Yes | |
addressee | string | Yes | |
streetAddress | string | No | |
coAddress | string | No | |
city | string | Yes | |
zipCode | string | Yes | |
countryCode | string | Yes | |
* One and only one of the specified objects can be set at each request
Examples
Create disbursement with swedish bank account
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"SwedishBankAccount" : {
"AccountNo":"944-1049000",
"AccountType":"BGSE"
}
}
Create a disbursement order with a norwegian bankaccount
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"norwegianBankAccount" : {
"accountNo" : "1234"
}
}
Create a disbursement order with an international bankaccount
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"international" : {
"iban" : "123456",
"bic" : "SWED..."
}
}
Create disbursement order using "Swedbanks lön- och utbetalningssystem (SUS)"
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"swedishSus" : {
"nationalIdentifier": {
"regNo" : "YYYYMMDD-NNNN",
"countryCode" : "SE"
},
"address" : {
"addressee" : "Kalle Axelstopp",
"streetAddress" : "Axelgatan 18",
"coAddress" : null,
"city" : "STOCKHOLM",
"zipCode" : "16872",
"countryCode" : "se",
}
}
}
Legal-address
The legal address is where claims is normally sent to. It is required for a customer to have a legal address registered
Get the legal address of the customer
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Content-Type: application/json
{
"addressee" : "Britt-Marie Axelstopp",
"streetAddress" : "The street 18",
"coAddress" : "c/o Jansson",
"city" : "STOCKHOLM",
"zipCode" : "15961",
"countryCode" : "SE",
"operations" :
[
{
"rel" : "update",
"href" : "/ledger/customer/v1/XXX/customers/9999/legal-address",
"method" : "PUT"
},
{
"rel" : "update-legal-address-from-population-register",
"href" : "/ledger/customer/v1/XXX/customers/9999/legal-address/update-legal-address-from-population-register",
"method" : "POST"
}
]
}
Operations
Depending on the current permissions the following operations is supported on the legal address resource
Update (replace)
Method: PUT
Use this operation to update the address, this "PUT" operation will replace the existing billing-address with the address specified in the request body.
Property | Required |
---|---|
addressee | Yes |
streetAddress | No |
coAddress | No |
city | Yes |
zipCode | Yes |
countryCode | Yes |
Example
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"addressee" : "Kalle Axelstopp",
"streetAddress" : "Axelgatan 18",
"city" : "STOCKHOLM",
"zipCode" : "16872",
"countryCode" : "SE"
}
update-legal-address-from-population-register
Method: POST
Execution of this operation will result in an attempt to retrieve (and replace) the customer's legal address from the population registry.
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
}
Legal-address resource properties
Property | Data type | Format | Description |
---|---|---|---|
addressee | string | Maxlength: 72 | Fullname |
streetAddress | string | Maxlength: 72 | |
coAddress | string | Maxlength: 72 | Care of (C/O) name. This is optional. |
city | string | Maxlength: 27 | |
zipCode | string | Maxlength: 9 | ZipCode without whitespaces |
countryCode | string | ISO 3166-1 alpha-2 |
Billing-address
The billing address is where invoices/bills/letters etc. is normally sent to.This address is optional
Get the billing address of the customer
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Content-Type: application/json
{
"addressee" : "Kalle Axelstopp",
"streetAddress" : "Axelgatan 18",
"coAddress" : "c/o Jansson",
"city" : "STOCKHOLM",
"zipCode" : "16872",
"countryCode" : "SE",
"operations" :
[
{
"rel" : "update",
"href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
"method" : "PUT"
},
{
"rel" : "delete",
"href" : "/ledger/customer/v1/XXX/customers/9999/billing-address",
"method" : "DELETE"
}
]
}
Add a billing-address
Property | Required |
---|---|
addressee | Yes |
streetAddress | No |
coAddress | No |
city | Yes |
zipCode | Yes |
countryCode | Yes |
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"addressee" : "Kalle Axelstopp",
"streetAddress" : "Axelgatan 18",
"city" : "STOCKHOLM",
"zipCode" : "16872",
"countryCode" : "SE"
}
Operations
Depending on the current permissions the following operations is supported on the billing address resource
Update (replace)
Method: PUT
Use this operation to update the address, the "PUT" body of the request should be accoring to the properties of the resource.
Property | Required |
---|---|
addressee | Yes |
streetAddress | No |
coAddress | No |
city | Yes |
zipCode | Yes |
countryCode | Yes |
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"addressee" : "Kalle Axelstopp",
"streetAddress" : "Axelgatan 18",
"city" : "STOCKHOLM",
"zipCode" : "16872",
"countryCode" : "SE"
}
Delete
Method: DELETE
Use this operation to delete the billing address.
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
}
Billing-address resource properties
Property | Data type | Format | Description |
---|---|---|---|
addressee | string | Maxlength: 72 | Fullname |
streetAddress | string | Maxlength: 72 | |
coAddress | string | Maxlength: 72 | Care of (C/O) name. This is optional. |
city | string | Maxlength: 27 | |
zipCode | string | Maxlength: 9 | ZipCode without whitespaces |
countryCode | string | ISO 3166-1 alpha-2 |
Consent
The consent resource is used to get the underlying resources that display information or enable registration of a customer's consent.
Get the underlying consent resources of the customer
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Content-Type: application/json
{
"recurringCard": "/ledger/customer/v1/XXX/customers/NNN/consent/recurring-card",
"recurringCardRedirectRegistration": "/ledger/customer/v1/XXX/customers/NNN/consent/recurring-card-redirect-registration"
}
Consent resource properties
Property | Data type | Format | Description |
---|---|---|---|
recurringCard | string | Path | Endpoint to resource |
recurringCardRedirectRegistration | string | Path | Endpoint to resource |
Recurring-card
This resource provides details about the customer's active Recurring Card Consent and the ability to remove it.
Get customer active Recurring Card Consent
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
Content-Type: application/json
{
"cardToken": "2eb28854-07ec-4e88-b672-7c61cc54b461",
"consentExpiryDate": "04-2035",
"instrumentDisplayName": "551000******1232",
"cardExpiryDate": "04/2035"
}
Delete customer active Recurring Card Consent
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
}
Content-Type: application/json
{
}
Recurring-card resource properties
Property | Data type | Format | Description |
---|---|---|---|
cardToken | string | Guid | Card Token Id |
consentExpiryDate | string | Date (MM-yyyy) | Expiry date of the consent |
instrumentDisplayName | string | Masked number | Masked card number used in the presentation layer |
cardExpiryDate | string | Date (MM/yyyy) | Expiry date of the card |
Recurring-card-redirect-registration
Initializes the customer's Recurring Card registration with redirect to SwedbankPay. The resource should be inquired until the status reaches an end status. Only one registration can be active at a time.
Start a Recurring Card registration
Property | Required | Comment |
---|---|---|
completeUrl | Yes | Redirect Url to be used if the user completes the card verification process. |
cancelUrl | Yes | Redirect Url to be used if the user cancels the card verification process. |
language | Yes | A language specified in the ISO 639-1 language code and with two letter country codes in the format "xx-YY". The following pairs are available: "en-US", "sv-SE", "nb-NO", "da-DK" and "fi-FI". |
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"completeUrl": "https://www.google.com/search?q=cancelurl",
"cancelUrl": "https://www.google.com/search?q=completeurl",
"language": "en-US"
}
Content-Type: application/json
{
"redirectUrl": "https://ecom.externalintegration.payex.com/checkout/abc123",
"status": "Initialized",
"@id": "/ledger/customer/v1/xxx/customers/yyy/consent/recurring-card-redirect-registration"
}
Get Recurring Card Redirect Registration
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
}
Content-Type: application/json
{
"redirectUrl": "https://ecom.externalintegration.payex.com/checkout/abc123",
"status": "Initialized"
}
Recurring-card-redirect-registration resource properties
Property | Data type | Format | Description |
---|---|---|---|
redirectUrl | string | Url | The redirect url to a flow that confirms the validity of card information without reserving or charging any amount. |
status | string | Status of the card validity verification process. One of the following: "Initialized", "Completed", "Aborted" or "Failed". |
Find customer
The find customer resource is located under ledger/customer/v1/ api. It is used to find customer with nationalIdentifier.
Property | Required |
---|---|
nationalIdentifier.regNo | Yes |
nationalIdentifier.countryCode | Yes |
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"nationalIdentifier": {
"regNo" : "YYYYMMDD-NNNN",
"countryCode" : "SE"
}
}
Content-Type: application/json
{
"@id" : "/ledger/customer/v1/XXX/customers/9999",
"customerNo" : " 9999"
}
Find customer resource properties
Property | Data type | Format | Description |
---|---|---|---|
@id | string | Maxlength: | Uri of the specific customer |
customerNo | string | Maxlength: 15 | |
nationalIdentifier.regNo | string | Country specific | Sweden: YYYYMMDD-NNNC Norway: DDMMYYNNNNN |
nationalIdentifier.countryCode | string | ISO 3166-1 alpha-2 |
Generate customer
The generate consumer customer by reg no resource is located under ledger/customer/v1/ api. It is used to genarate a customer with a nationalIdentifier. It will retreive an legal address from the population register and create a consumer customer.
Property | Required |
---|---|
customerNo | No |
nationalIdentifier.regNo | Yes |
nationalIdentifier.countryCode | Yes |
emailAddress | No |
msisdn | No |
Host: -
Authorization: Bearer <Token>
Content-Type: application/json
{
"nationalIdentifier": {
"regNo" : "YYYYMMDD-NNNN",
"countryCode" : "SE"
},
"emailAddress" : "britt@axelstopp.com",
"msisdn" : "+91485918841",
"customerNo" : "9999"
}
Content-Type: application/json
{
"@id" : "/ledger/customer/v1/XXX/customers/9999",
"customerNo" : " 9999"
}
Generate customer resource properties
Property | Data type | Format | Description |
---|---|---|---|
@id | string | Maxlength: | Uri of the specific customer |
customerNo | string | Maxlength: 15 | |
nationalIdentifier.regNo | string | Country specific | Sweden: YYYYMMDD-NNNC Norway: DDMMYYNNNNN |
nationalIdentifier.countryCode | string | ISO 3166-1 alpha-2 | |
emailAddress | string | Maxlength: 254 Regex pattern: [^@]+@[^\.]+\..+ | |
msisdn | string | Maxlength: 15 | "Mobile Subscriber Integrated Services Digital Network Number", ie. Cellphone number +46720000000 |
Problems
All errors from the api are returned in the form of "problems" (response body), except for the http status code itself.
The problem object contain more detailed info on what the error is. The "type" property can be used to programmatically interpret the error as it contains a code definition of the problem.
Other properties can be useful for logging and subsequent troubleshooting. Some problems are extended with additional parameters so it may be a good idea to log response body as raw data to include these.
Problems of type validation does contain an additional list ("Problems") that describes exactly which parameter that failed the validation
Example
Content-Type: application/problem+json
{
"Type" : "ledger/{domain}/v1/problems/validation",
"Title" : "A validation error occurred",
"Status" : 400,
"Instance" : "215d4206-ca35-4f43-85ad-169c8f6d4ec1",
"Detail" : "A validation error occurred. Please fix the problems mentioned in the 'problems' property below.",
"Problems" :
{
"amount" : [
"Expected value between [0,01]-[79228162514264337593543950335] actual [0]"
]
}
}
Problem types
Problem type (code) | Httpstatus | Description |
---|---|---|
validation | 400 | occurs if any of the inputvalidation fails, it is described in the problem which parameter that failed the validation |
forbidden | 403 | occurs if access to method is not allowed. |
not-found | 404 | specified resource not found |
customer-not-found | 404 | specified customer number does not exists |
legal-address-does-not-exists | 404 | legal address does not exists for the specified customer |
billing-address-does-not-exists | 404 | billing address does not exists for the specified customer |
